Product Description:
Excitation coil doing magnetic induction on detected material, detecting coils received the induced electromotive force has relationship with shape and size of material hysteresis loop,when sine wave excitation voltage is doing magnetic induction ,the induced electromative force is sinusoidal waveform ,including fundamental wave normally,by measuring fundamental wave component of detecting coil induced electromotive force,it can detect flaw ,heat treatment condition of detected products so as to realize material ,hardness and quenching crack detection.
Features:

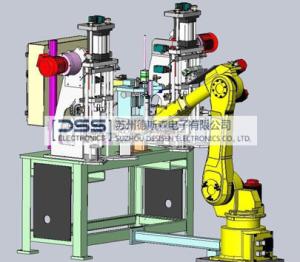

The equipment possesses two channels,one of channels is equipped with full automatic mechanism that suitable for steel material and so on metal cars accessories fasteners crack full automatic eddy detector ,and equipped with another independent manual channel,suitable for sorting detection of bolt quenching crack and forging crack.
The process of full automatic channel process: after spiral passing shake material plate and slip into next channel ,doing supplying orderly by two interaction of cylinder and fall into detecting positioning chain and trigger optoelectronic signal and drive chain rotation step forward by step electrical machine and pass probes and detecting.after detecting ,at the rotation,when it is qualified then accumulate detective samples.if not qualified,then eliminated by sorting cylinder. Electric control mode, realizing the whole process logic control by optoelectronic switch;detecting host and probe realize detecting signal output by multi-frequency and graphic display precision.
Manual channel process: manual supply by operator,at the same time the computer detecting procedure is also control and realize automatic sound -light alarm about unqualified products.
The system includes FET-55H (or H type) detecting host (including probe)full automatic double channels detecting sorting mechanism electric control mode.
Technical Parameters:
| Name |
Portable Eddy Current Flaw Detector ERW |
| Sorting speed |
not lower than 50pieces per minute |
| Using time |
more than 24hours in a row |
| Switching speed of product specification |
less than 40minutes |
| Users provide air pressure |
7-9bars |
| Users provides power source |
AC220V,50Hz |
Support and Services:
Technical Support and Service for FET-55H Automatic Flaw Detector
We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.
On-site Support
Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.
Online Support
Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is Desisen.
Q2: What is the model number of this product?
A2: The model number of this product is FET-55H Automatic.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product has ISO9001 certification.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.
